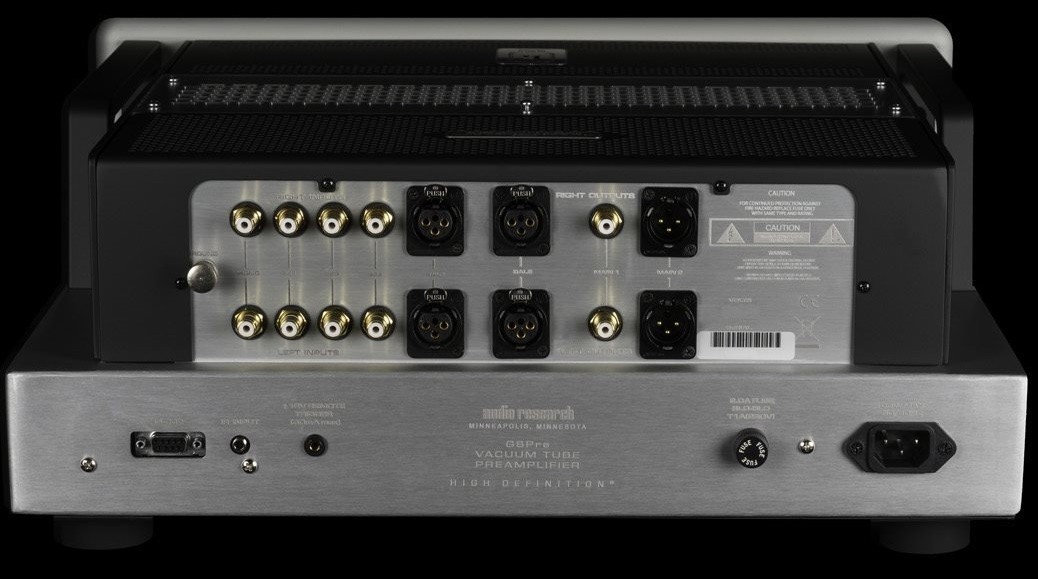

Audio Research - GSPre Préamplificateur
The GSPre is the nerve center of a system – not only directing signals and providing attenuation, but also interpreting and deciphering complex signals to create a musical story with the drama and intrigue befitting your favorite songs.
The GSPre is the nerve center of a system – not only directing signals and providing attenuation, but also interpreting and deciphering complex signals to create a musical story with the drama and intrigue befitting your favorite songs. The job of a preamplifier is to do its work discretely, leaving the musical signal with as little signature as possible yet still unraveling the chapters that comprise the lyrical narratives of the source material. With decades of expertise creating some of the finest preamplifiers ever produced, the GSPre is certain to continue the legacy on which Audio Research has built its reputation.
Caractéristiques techniques
- Réponse en fréquence:
- line: 0.8Hz-220KHz
- Phono: RIAA 5Hz-80KHz
- Headphone: 0.8Hz-220KHz
- THD+N @ 1KHZ
- line: <.002% at 2V RMS, Bal output
- Phono: <.005% at 3V RMS output, to Record output
- Headphone: <.009% at 1V RMS output
- Gain @ 1KHZ
- line: 13.8 dB, Processor: 0dB
- Phono: 58dB @ 1KHz to Record output
- Headphone: 11.3dB
- Noise (A-WEIGHTED)
- line: <-101dBV volume at max.
- Phono: <-77dBV to Record output
- Headphone: <-88dBV volume at max.
- CHANNEL SEPARATION @ 1KHZZZ
- line: > 75dB Balanced output
- Phono: >70dB to Record output
- Headphone: >60dB
- Rapport signal bruit @ 1KHZ, A-WEIGHTED
- line: >125dB Balanced output
- Phono: >94dB to Record output
- Headphone: >110dB
- Impedance d'entrée
- 150K ohms Balanced, 75K ohms SE; Phono impedance programmable (100, 200, 500, 1000 or 47KΩ w/200pf unbalanced)
- Impedance sorti @ 1KHZ
- 500Ω Balanced
- 250Ω SE
- <.05Ω Headphone SE
- Sortie line: 2V RMS (1V RMS SE) into 200KΩ balanced load
- Phono: 0.5V RMS into 200K load, Max output same as Line stage.
- Headphone: 6V RMS maximum into 30 to 300 ohm load.
- Tube complement (6) 6H30P dual triodes.
- Dimensions: WxHxD 483x197x438mm
- Weight: 11.3 kg
