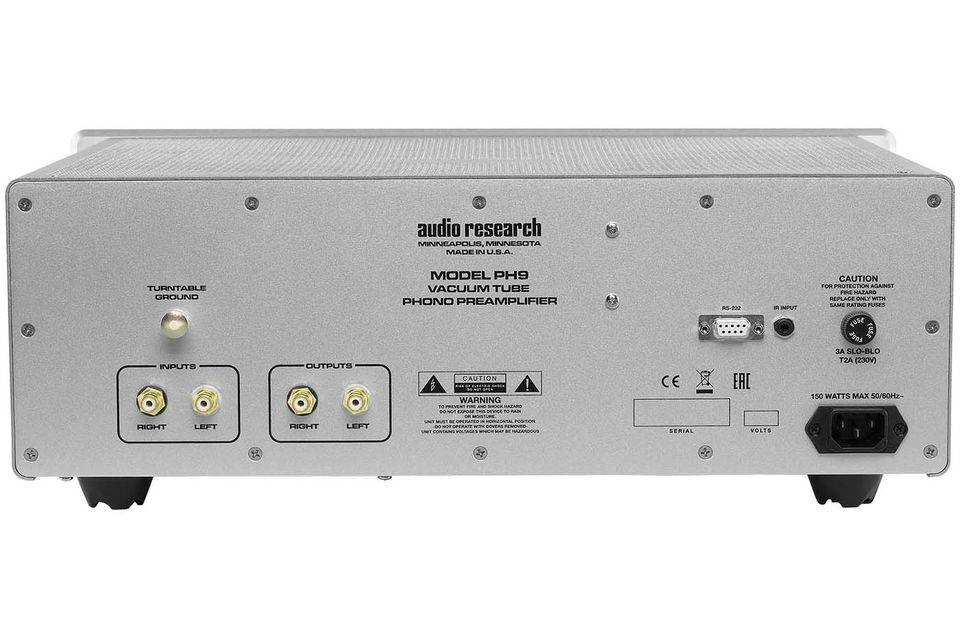

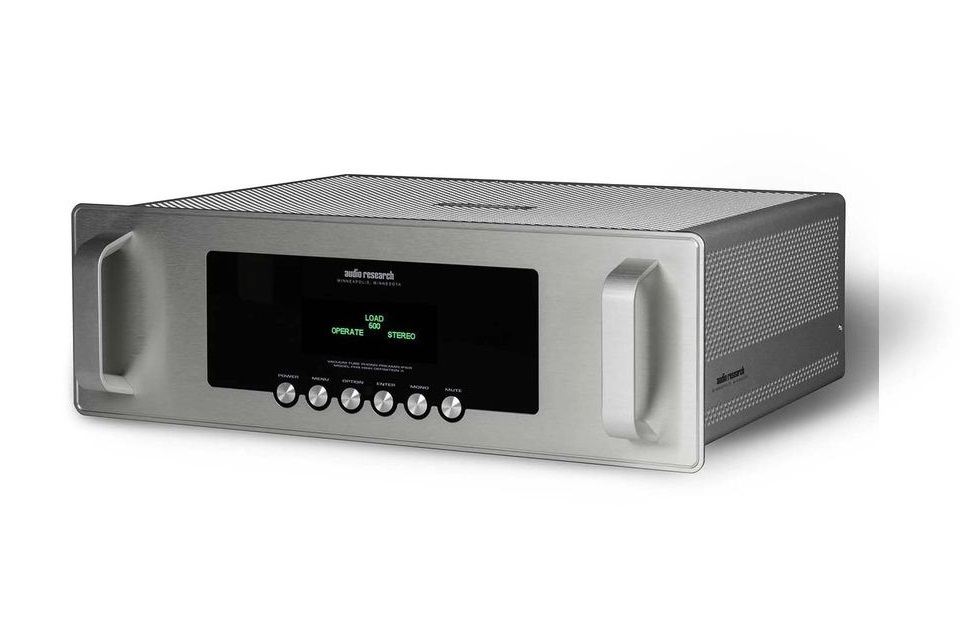

    Audio Research - PH9 Préamplificateur phono
    Audio Research - PH9 Préamplificateur phono
    Audio Research - PH9 Préamplificateur phono

    Audio Research - PH9 Préamplificateur phono

    Marque : Audio Research
    Référence : PH9
    Prix : 12 900 €

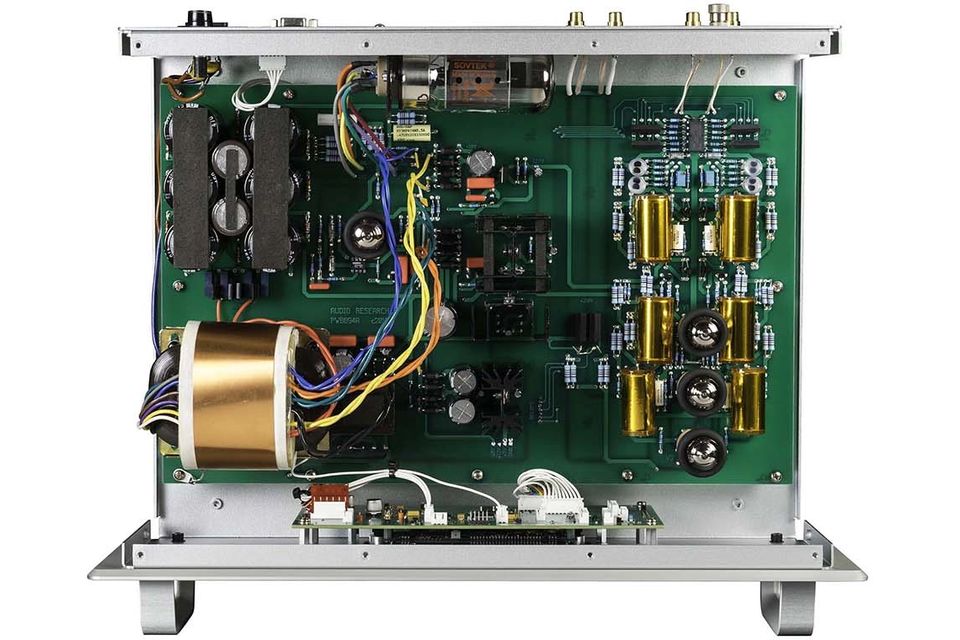

     The PH9 phono preamplifier is a great pairing with most cartridge and turntable combinations. A trio of 6H30 vacuum tubes are at the core of a simple and clear signal path to provide the most transparent preamplification possible. Five different impedance settings allow for cartridge loading, which can be changed on the fly with the included metal remote. Cartridge impedance, tube hours, auto shutdown, and other features are included in the menu system.

    Finitions disponibles : Black ou Silver

    Caractéristiques techniques

    • Reponse en fréquence 5Hz-20kHz
    • Distortion - de .015%
    • Gain 55 dB at 1 kHz
    • Input impedance 47k, 1000, 500, 200, 100Ω
    • Output Impedance 200Ω
    • Recommended load 50k-100kΩ
    • Output Polarity Non-inverting.
    • Maximum Input 80 mV RMS at 1kHz.
    • Rated Output 0.5V RMS
    • Line regulation better than .01%.
    • Bruit >77 dB, shorted inputs.
    • Tube Complement (3)-6H30P dual triodes, plus (1 each) 6550WE and 6H30P in power supply.
    • Dimensions (WxHxD) 48x13.7x34.8 cm
    • Poids: 7 kg
