Platine vinyle Brinkmann Audio - LaGrange

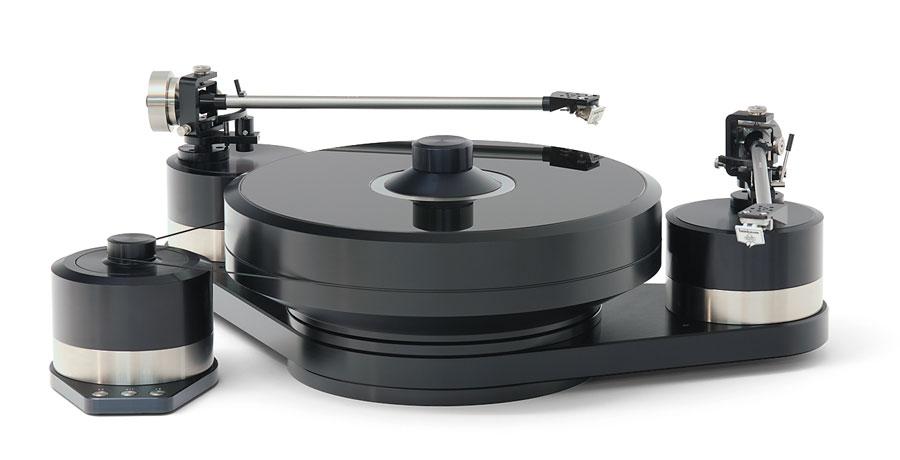

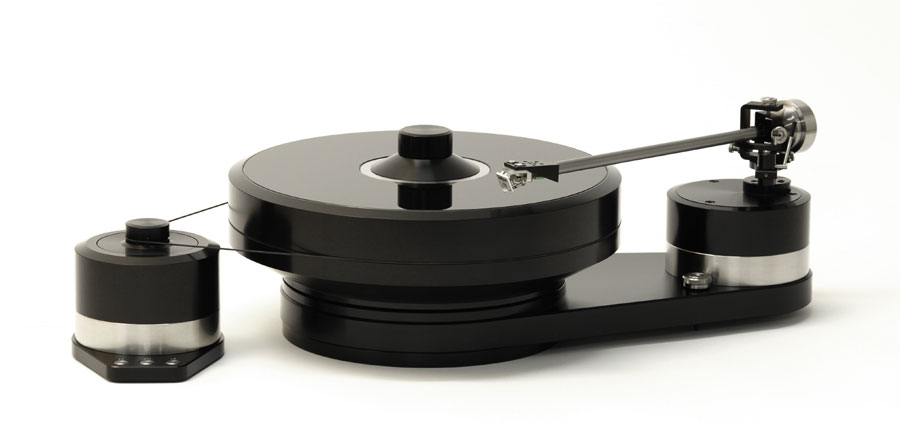

Turntable »LaGrange« Ultmost mechanical stability is a prerequisite for perfect LP reproduction. In order to achieve it, all parts have to bemadewith extremely tight tolerances. In order to rotate the »LaGrange's« platter, weighing in at 16 kilograms, securely and without radial run out, the bearing has to have extremely tight clearance and absolutely minimal play. But with tolerances that tight, the different coefficients of expansion of the materials used begin to come into play. We therefore heat the bearing electronically in order to render it insensitive to temperature changes. The platter measures 9 cm in height and is slightly tapered towards the bottom. It is composed of a resonance-free alloy containing aluminum, copper, magnesium and several other materials. The LP is pressed onto the crystal glass platter top by means of a screw-down clamp. This intimate contact leads any tracking related vibrations quickly and directly into the platter. We offer the »LaGrange« turntable in versions for one or two tonearms up to 12 inches length. The arm bases are securely fixed to the base plate by means of adjustable collars.
Caractéristiques techniques
- Drive precision ground round belt
- Dimensions (WxDxH) 550 x 400 x 140 mm
- Weight 30 kg (1 arm), 32 kg (2 arms)
- Platter weight 16 kg, Ø 316 mm, height 90 mm.
- Platter surface planar polished crystal glass (recessed mounting)
- Tonearm base one each for 9...10.5'' and 10.5...12.1'' tonearms
- (arm mountings available for virtually any tonearm),
- easy and quick exchange and adjustments are provided via a collar system.
- Included in delivery turntable, screw-down record clamp, solid state power supply, tools
- Options tube power supply »RöNt«, additional arm bases
