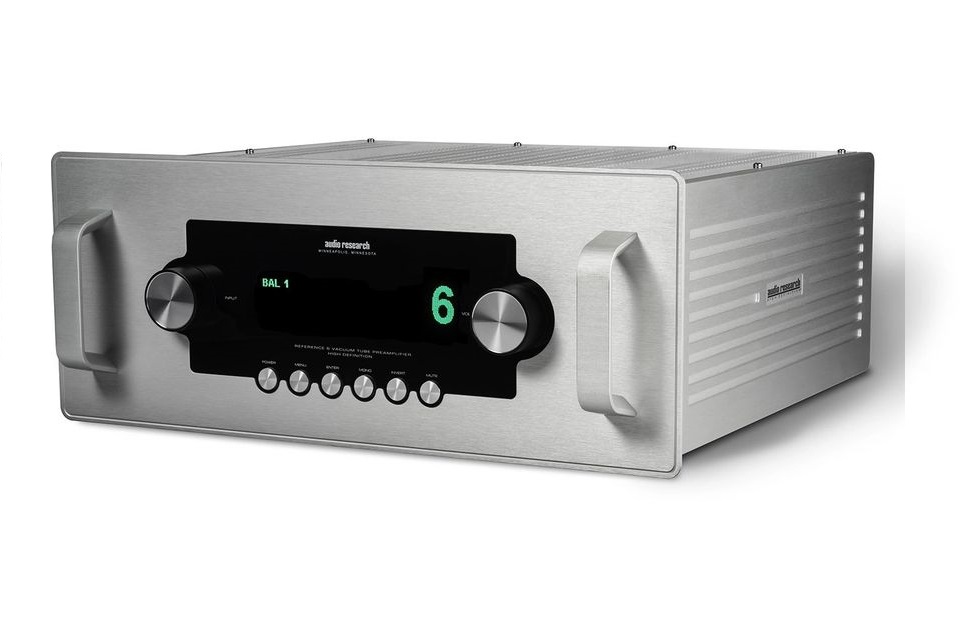

Audio Research - REF 6 SE Préamplificateur
Almost since the inception of the brand, Audio Research has produced some of the finest components for music reproduction; this is especially true with regard to preamplifiers. In 1973, the SP3 was hailed as the best preamplifier available, and this tradition of excellence has continued ever since. The Reference Series from Audio Research was first introduced in 1995 and has been the ultimate representation of performance, musicality and power. The Reference 6 is the latest chapter of our story. The Reference 6 is not simply a market-driven product, but rather, a solution to a need which arose after the creation of the Reference SE Series amplifiers. According to Warren Gehl, who is responsible for sonic development of all Audio Research products, the new series of Reference amplifiers offer a level of musical and dynamic capability only made apparent when using the flagship, two-chassis Reference 10 preamplifier. Both preamplifiers of the Reference Series need the ability to provide the full benefit of this new sonic landscape. Increasing the tube count to six in the analog section, and advancements in the power supply improved both macro- and microdynamics and lowered distortion.
Caractéristiques techniques
- Réponse en fréquence 0.4Hz-200kHz
- Gain
- Main output: 12dB
- Record out: 0dB
- Input Imp 120KΩ Balanced, 60KΩ SE
- Inputs: 4 balanced, 4 single-ended. Assignable processor passthrough.
- Impedance de Sortie:
- 600Ω Balanced
- 300Ω SE Main (2)
- 20KΩ minimum load and 2000pF maximum capacitance.

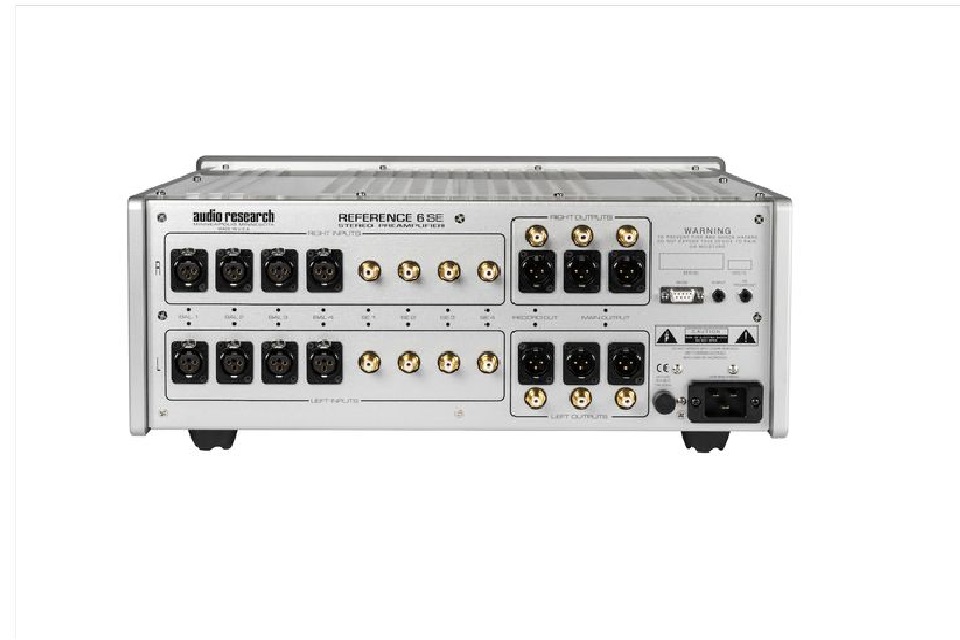

- Outputs (3): 2 main, 1 record out (XLR and RCA connectors).
- Output polarity Non-inverting.
- Max input 18V RMS BAL, 9V RMS SE.
- Rated outputs 2V RMS (1V RMS SE) into 200KΩ balanced load (maximum balanced output capability is 70V RMS at less than 0.5% THD at 1kHz).
- Crosstalk -88dB or + at 1kHz / 10kHz
- Noise 1.7uV RMS residual IHF weighted balanced equivalent input noise with volume at 1 (109dB below 2V RMS output.)
- Tube complement (6)-6H30P dual triodes, plus (1 each) 6550WE and 6H30P in power supply.
- Dimensions (WxHxD): 48x19.8x41.9cm
- Poids 17 kg
